What are the surface treatments for deep groove ball bearings?

Deep groove ball bearings are one of the most widely used types of bearings in various industrial applications. Their simple design, high efficiency, and ability to handle both radial and axial loads make them a staple in sectors ranging from automotive to machinery manufacturing. Surface treatments play a crucial role in enhancing the performance and longevity of these bearings. As a deep groove ball bearing supplier, I'd like to delve into the key surface treatments commonly employed for deep groove ball bearings.

Nitriding

Nitriding is a heat treatment process that involves the diffusion of nitrogen into the surface of the bearing steel. This treatment forms a hard, wear - resistant nitride layer on the surface. The nitride layer can increase the hardness of the bearing's surface significantly, which in turn enhances its resistance to wear and fatigue.

When a deep groove ball bearing is in operation, the rolling elements and raceways undergo high - stress contact. The wear - resistant nitride layer can reduce the friction between these components, thereby minimizing the wear rate. For example, in high - speed applications such as electric motor shafts where the bearings are constantly rotating at high speeds, nitrided deep groove ball bearings can maintain their performance for a longer time.

Moreover, nitriding also improves the corrosion resistance of the bearings. The nitride layer acts as a barrier, preventing the penetration of corrosive substances into the bearing material. This is particularly important in harsh environments where the bearings are exposed to moisture, chemicals, or other corrosive agents.

Carburizing

Carburizing is another popular surface treatment method for deep groove ball bearings. It involves introducing carbon into the surface layer of low - carbon steel bearings at high temperatures. The resulting carburized layer has a high carbon content, which can be quenched and tempered to achieve high hardness.

The main advantage of carburizing is that it combines a hard surface with a tough core. The hard surface provides excellent wear resistance, which is essential for bearings that operate under heavy loads or in high - wear conditions. The tough core, on the other hand, ensures that the bearing can withstand impact loads without fracturing.

In the automotive industry, carburized deep groove ball bearings are often used in wheel hubs and transmissions. These bearings need to endure both the high - speed rotation and the heavy loads generated by the vehicle. The carburizing treatment allows the bearings to meet these demanding requirements, providing reliable performance over an extended period.

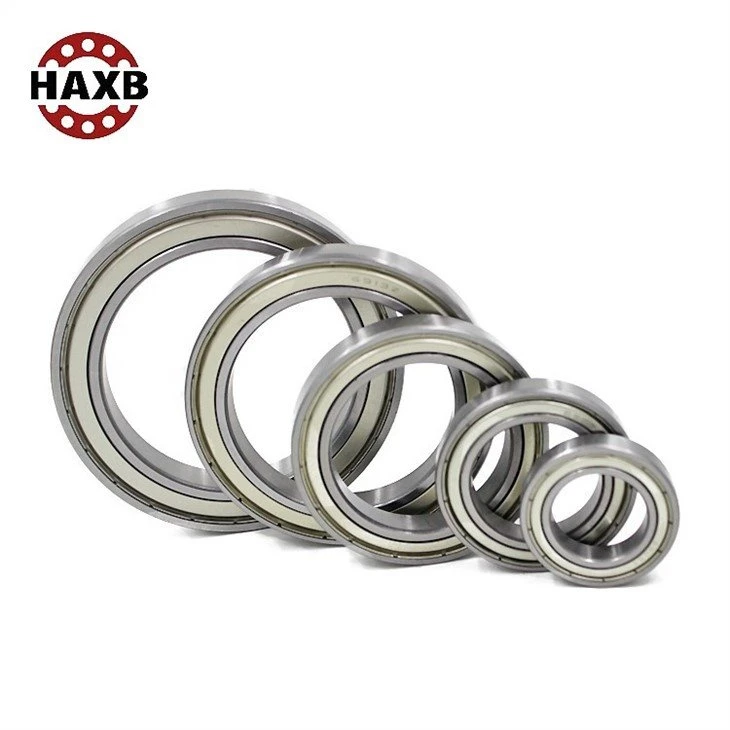

Single Row Deep Groove Bearing is a type of bearing that can greatly benefit from carburizing. The single - row design combined with the enhanced properties from carburizing makes it suitable for a wide range of applications.

Chrome Plating

Chrome plating is a surface treatment that deposits a thin layer of chromium onto the surface of the bearing. Chrome has several beneficial properties for bearing applications. Firstly, it has excellent corrosion resistance. When a deep groove ball bearing is chrome - plated, it can better withstand the effects of rust and corrosion, prolonging its service life, especially in environments where there is a high risk of corrosion.

Secondly, chrome plating can improve the surface smoothness of the bearing. A smoother surface reduces friction between the rolling elements and the raceways, which in turn can lower the operating temperature of the bearing. Lower operating temperatures are beneficial as they can prevent premature lubricant degradation and reduce the risk of thermal damage to the bearing components.

6236 Mechanical Spindle Bearing can be enhanced with chrome plating. In mechanical spindle applications, where precision and low - friction operation are critical, the smooth and corrosion - resistant surface provided by chrome plating can improve the overall performance of the bearing.

Phosphate Coating

Phosphate coating is a chemical conversion process that forms a phosphate layer on the surface of the bearing. This layer has several functions. One of the main advantages is its ability to improve lubrication. The porous structure of the phosphate coating can hold lubricants, providing a continuous supply of lubrication between the rolling elements and the raceways.

This is particularly useful during the initial start - up of the bearing, where the lubricant may not be evenly distributed. The phosphate - coated surface helps to reduce the risk of metal - to - metal contact and subsequent wear. Additionally, phosphate coating can also enhance the corrosion resistance of the bearing to some extent, protecting it from the effects of moisture and mild corrosive substances.

DLC Coating (Diamond - Like Carbon Coating)

DLC coating is a relatively new surface treatment option for deep groove ball bearings. It is a hard, amorphous carbon - based coating that offers extremely low friction coefficients and high wear resistance. The low friction characteristic of DLC coating can significantly reduce the energy consumption of the bearing - driven systems.

In high - precision applications such as medical equipment and aerospace, where minimal friction and high reliability are required, DLC - coated deep groove ball bearings are increasingly being used. Thin Wall Ball Bearings can benefit greatly from DLC coating. The thin - wall design combined with the superior properties of DLC coating allows for more compact and efficient bearing solutions.

Choosing the Right Surface Treatment

Selecting the appropriate surface treatment for deep groove ball bearings depends on several factors. The operating environment is a crucial consideration. In corrosive environments, treatments such as chrome plating or nitriding may be preferred due to their high corrosion resistance. For applications with heavy loads or high - speed requirements, carburizing can provide the necessary hardness and toughness.

Cost is another important factor. Some surface treatments, such as DLC coating, can be relatively expensive due to the complex coating processes involved. In contrast, phosphate coating is generally more cost - effective. Therefore, a balance between performance requirements and cost needs to be struck when choosing a surface treatment.

As a deep groove ball bearing supplier, we understand the importance of these factors and can help our customers select the most suitable surface - treated bearings for their specific applications. Whether you are in the automotive, machinery, or any other industry, we are committed to providing high - quality bearings with the right surface treatments to meet your needs.

If you are interested in purchasing deep groove ball bearings or would like to learn more about our surface - treatment options, don't hesitate to contact us for procurement discussions. We look forward to working with you to find the best bearing solutions for your business.

References

• "Bearing Technology Handbook", Second Edition, by Peter Bowen
• "Mechanical Design and Analysis of Machine Elements", by Mustapha Dogan and Garrett A. Hobbs
• "Handbook of Tribology: Materials, Coatings, and Surface Treatments" edited by Bharat Bhushan
