What is the difference between single - row and double - row tapered roller bearings?

Hey there! As a supplier of tapered roller bearings, I often get asked about the difference between single - row and double - row tapered roller bearings. So, let's dive right in and break it down.

Basics of Tapered Roller Bearings

First off, let's quickly cover what tapered roller bearings are. These bearings are designed to handle both radial and axial loads. They consist of tapered rollers arranged in a way that allows them to distribute loads evenly across the bearing surface. The unique shape of the rollers and the raceways enables them to take on significant amounts of force, making them a popular choice in many industrial applications.

Single - Row Tapered Roller Bearings

Single - row tapered roller bearings are the simplest form of these types of bearings. They have one row of tapered rollers between the inner and outer races.

Structure and Design

The design is relatively straightforward. The inner and outer races are tapered, and the rollers are also tapered to match the raceways. This design allows the bearing to handle both radial and axial loads, but they are generally better at handling radial loads compared to axial loads.

Load Capacity

In terms of load capacity, single - row tapered roller bearings are suitable for applications where the load is not extremely high. They can handle moderate radial loads and a certain amount of axial load in one direction. For example, in a small - to medium - sized automotive wheel hub, a single - row tapered roller bearing might be used to support the weight of the vehicle (radial load) and some of the forces generated during cornering (axial load).

Installation and Maintenance

Installation of single - row tapered roller bearings is relatively easy. They are often pre - adjusted, which means that they can be installed with less hassle. Maintenance is also straightforward. Regular lubrication and inspection for wear and tear are usually sufficient to keep them in good working condition.

Double - Row Tapered Roller Bearings

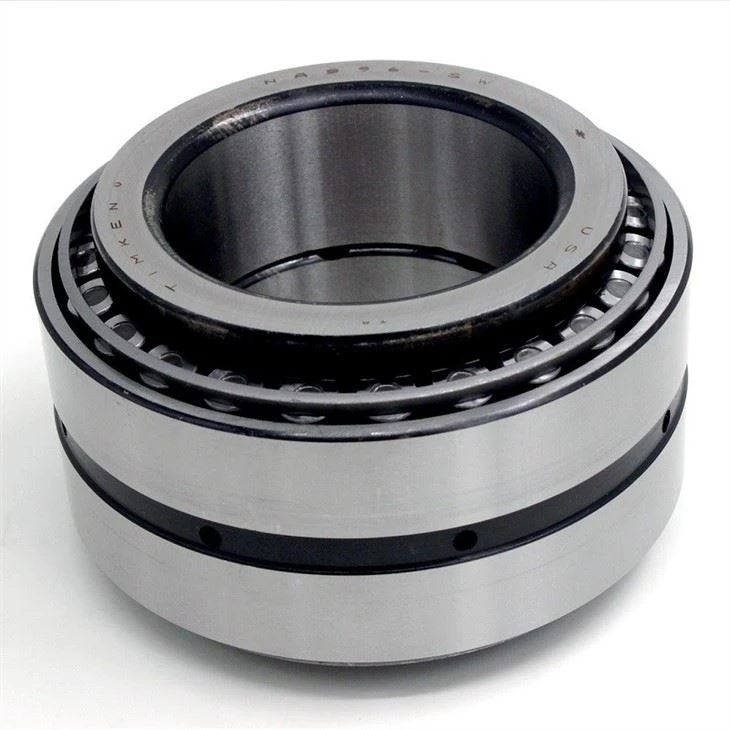

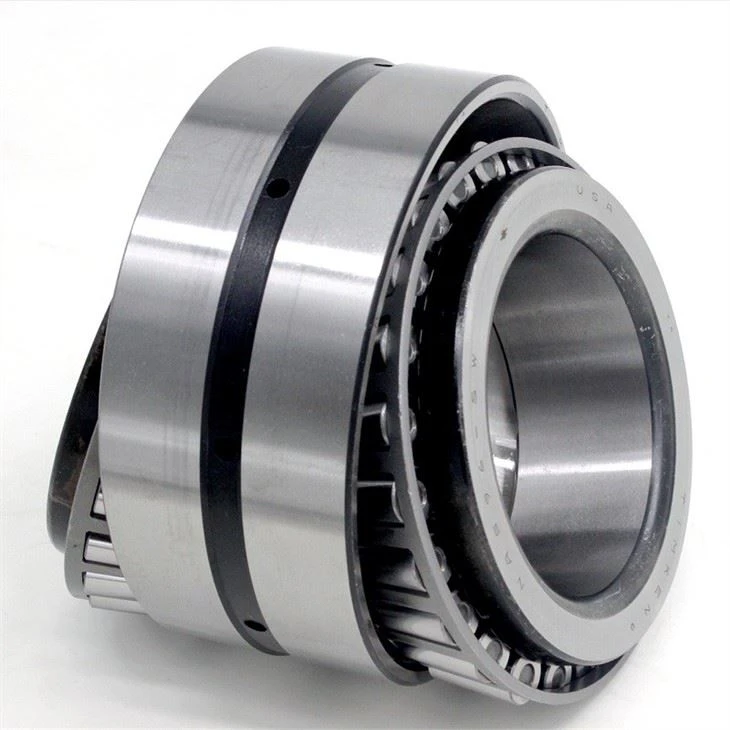

Now, let's talk about Double Row Tapered Roller Bearing. As the name suggests, these bearings have two rows of tapered rollers.

Structure and Design

The double - row design provides a more complex but more robust structure. The two rows of rollers are arranged in a way that allows them to handle axial loads in both directions. The inner and outer races are also designed to accommodate the two rows of rollers, providing a larger contact area for load distribution.

Load Capacity

Double - row tapered roller bearings have a much higher load capacity compared to single - row bearings. They can handle large radial loads as well as significant axial loads in both directions. This makes them ideal for applications where heavy loads are involved, such as in large industrial machinery, heavy - duty vehicles, and some high - performance automotive applications. For instance, in a large - scale mining equipment, double - row tapered roller bearings are used to support the heavy components and withstand the high forces generated during operation.

Installation and Maintenance

Installation of double - row tapered roller bearings requires more precision. They need to be properly aligned and adjusted to ensure optimal performance. Maintenance is also more critical, as any misalignment or improper lubrication can lead to premature wear and failure. However, with proper care, they can have a long service life.

Key Differences

Load Handling

The most significant difference between single - row and double - row tapered roller bearings is their load - handling capabilities. Single - row bearings are better for light - to medium - duty applications with moderate loads, while double - row bearings are designed for heavy - duty applications with high loads.

Axial Load Direction

Single - row bearings can handle axial loads in one direction, while double - row bearings can handle axial loads in both directions. This makes double - row bearings more versatile in applications where the direction of the axial load may change.

Size and Space Requirements

Double - row bearings are generally larger and require more space compared to single - row bearings. This is something to consider when designing a machine or a system. If space is limited, a single - row bearing might be a better choice, even if the load capacity is slightly lower.

Cost

Double - row tapered roller bearings are usually more expensive than single - row bearings. This is due to their more complex design and higher load - handling capabilities. However, in applications where the performance of a double - row bearing is necessary, the extra cost is often justified.

Other Types of Tapered Roller Bearings

In addition to single - row and double - row tapered roller bearings, there are also Four Row Tapered Roller Bearings. These bearings have four rows of tapered rollers and are designed for extremely high - load applications, such as in rolling mills.

Another important concept is Mating Bearing. Mating bearings are used in pairs to provide better load distribution and handling. They are often used in applications where precise alignment and high load capacity are required.

Choosing the Right Bearing

When choosing between single - row and double - row tapered roller bearings, several factors need to be considered. First, you need to determine the type and magnitude of the loads your application will experience. If the loads are light to moderate, a single - row bearing might be sufficient. However, if the loads are heavy and you need to handle axial loads in both directions, a double - row bearing is the way to go.

You also need to consider the space available in your application. If space is limited, a single - row bearing might be more practical. Cost is another factor. While double - row bearings offer better performance, they are more expensive. You need to balance the performance requirements with your budget.

Contact Us for Your Bearing Needs

If you're still unsure which type of tapered roller bearing is right for your application, don't worry! As a supplier of tapered roller bearings, we have a team of experts who can help you make the right choice. Whether you need a single - row bearing for a small project or a double - row bearing for a heavy - duty application, we've got you covered.

We offer a wide range of high - quality tapered roller bearings at competitive prices. Our bearings are sourced from reliable manufacturers and undergo strict quality control to ensure their performance and durability.

So, if you're interested in purchasing tapered roller bearings or need more information, feel free to reach out to us. We're here to assist you with all your bearing needs and help you find the perfect solution for your application.

References

• "Rolling Bearing Analysis" by Tedric A. Harris and Michael N. Kotzalas
• "Handbook of Bearing Technology" by Klaus - Dieter Bouzakis and Michael - Andreas Wulfsberg
