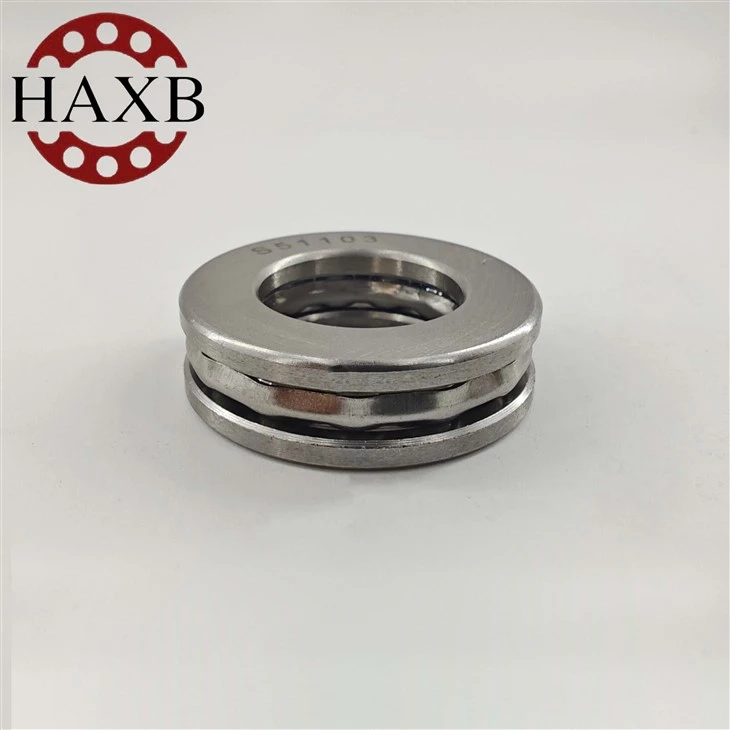

Stainless Steel Thrust Ball Bearing 51103
The Stainless Steel Thrust Ball Bearing 51103 is a high-performance component for axial load applications.Made of premium stainless steel,it boasts strong corrosion and rust resistance,ideal for harsh environments like food processing,marine, and medical sectors.It features a classic thrust structure with two washers and a ball set,designed to handle single-direction axial loads efficiently.Its precision machining ensures low friction and smooth operation,while the separable design simplifies installation and maintenance,making it reliable for light to medium-load scenarios.
- Product Introduction
Product Details
| Stainless Steel Thrust Ball Bearing 51103 | |||
|
Brand |
HAXB/SKF |
Enclosure |
ZZ/2RS |
|
Diameter-Metric |
17*30*9MM |
Number of rows |
Single row |
|
Weight |
0.028Kilogram |
Rolling Element |
Ball Bearing |
|
Ring Material |
Stainless steel |
Cage Material |
Stainless steel 304 |
|
Precision Class |
ABEC-3 | ISO P6 |
HS Code |
8483.20 |
|
Internal Clearance |
C0-Medium/C3-Loose/C2 |
Mounting Method |
Shaft |
|
MOQ |
500PCS |
Sample |
Available |
Product Introduction
The Stainless Steel Thrust Ball Bearing 51103 is forged from premium stainless steel, a key attribute that grants it exceptional resistance to corrosion, rust, and chemical erosion. Unlike conventional bearings, it maintains stable performance even in harsh conditions-such as high-humidity food processing plants, saltwater-exposed marine equipment, or chemical production lines. This material also meets strict hygiene standards, making it a reliable choice for industries where cleanliness and long-term durability are non-negotiable.
This bearing features a classic thrust ball structure, composed of two precision-machined washers (shaft washer and housing washer) and a set of high-quality balls secured by a durable cage. As part of the "511" series, it is specifically engineered to handle single-direction axial loads, efficiently transferring compressive forces along the shaft. The seamless fit of its components minimizes friction during operation, ensuring smooth rotation, low wear, and consistent performance. Additionally, its separable design allows easy disassembly of washers and the ball set, simplifying installation and maintenance.
Thanks to its corrosion resistance and robust axial load capacity, the Stainless Steel Thrust Ball Bearing 51103 is widely utilized across diverse sectors. It excels in food processing machinery (e.g., mixers, conveyors) where hygiene is critical, and in marine systems where saltwater exposure is common. It also meets the strict requirements of medical equipment and industrial pumps, adapting seamlessly to both light and medium-load scenarios. Its ability to perform reliably in demanding environments makes it a go-to solution for global manufacturers.
Model and Size Table
|
Bearing NO. |
Dimension(mm) |
Mass kg |
Bearing NO. |
Dimension(mm) |
Mass kg |
||||
|
d |
D |
T |
d |
D |
T |
||||
|
51100 |
10 |
24 |
9 |
0.019 |
51215 |
75 |
110 |
27 |
0.850 |
|
51101 |
12 |
26 |
9 |
0.021 |
51216 |
80 |
115 |
28 |
0.925 |
|
51102 |
15 |
28 |
9 |
0.024 |
51217 |
85 |
125 |
31 |
1.300 |
|
51103 |
17 |
30 |
9 |
0.025 |
51218 |
90 |
135 |
35 |
1.770 |
|
51104 |
20 |
35 |
10 |
0.038 |
51220 |
100 |
150 |
38 |
2.400 |
|
51105 |
25 |
42 |
11 |
0.056 |
51222 |
110 |
160 |
38 |
2.600 |
|
51106 |
30 |
47 |
11 |
0.066 |
51224 |
120 |
170 |
39 |
2.900 |
|
51107 |
35 |
52 |
12 |
0.083 |
51226 |
130 |
190 |
45 |
4.320 |
|
51108 |
40 |
60 |
13 |
0.120 |
51228 |
140 |
200 |
46 |
4.600 |
|
51109 |
45 |
65 |
14 |
0.150 |
51305 |
25 |
52 |
18 |
0.171 |
|
51110 |
50 |
70 |
14 |
0.160 |
51306 |
30 |
60 |
21 |
0.265 |
|
51111 |
55 |
78 |
16 |
0.240 |
51307 |
35 |
68 |
24 |
0.378 |
|
51112 |
60 |
85 |
17 |
0.290 |
51308 |
40 |
78 |
26 |
0.550 |
|
51113 |
65 |
90 |
18 |
0.324 |
51309 |
45 |
85 |
28 |
0.690 |
|
51114 |
70 |
95 |
18 |
0.360 |
51310 |
50 |
95 |
31 |
1.000 |
|
51115 |
75 |
100 |
19 |
0.392 |
51311 |
55 |
105 |
35 |
1.340 |
|
51116 |
80 |
105 |
19 |
0.433 |
51312 |
60 |
110 |
35 |
1.430 |
|
51117 |
85 |
110 |
19 |
0.460 |
51313 |
65 |
115 |
36 |
1.570 |
|
51118 |
90 |
120 |
22 |
0.655 |
51314 |
70 |
125 |
40 |
1.950 |
|
51120 |
100 |
135 |
25 |
1.000 |
51315 |
75 |
135 |
44 |
2.700 |
|
51122 |
110 |
145 |
25 |
1.080 |
51316 |
80 |
140 |
44 |
2.800 |
|
51200 |
10 |
26 |
11 |
0.029 |
51317 |
85 |
150 |
49 |
3.700 |
|
51201 |
12 |
28 |
11 |
0.032 |
51318 |
90 |
155 |
50 |
3.900 |
|
51202 |
15 |
32 |
12 |
0.044 |
51320 |
100 |
170 |
55 |
5.100 |
|
51203 |
17 |
35 |
12 |
0.051 |
51405 |
25 |
60 |
24 |
0.310 |
|
51204 |
20 |
40 |
14 |
0.073 |
51406 |
30 |
70 |
28 |
0.510 |
|
51205 |
25 |
47 |
15 |
0.109 |
51407 |
35 |
80 |
32 |
0.760 |
|
51206 |
30 |
52 |
16 |
0.138 |
51408 |
40 |
90 |
36 |
1.060 |
|
51207 |
35 |
62 |
18 |
0.220 |
51409 |
45 |
100 |
39 |
1.410 |
|
51208 |
40 |
68 |
19 |
0.270 |
51410 |
50 |
110 |
43 |
1.860 |
|
51209 |
45 |
73 |
20 |
0.320 |
51411 |
55 |
120 |
48 |
2.510 |
|
51210 |
50 |
78 |
22 |
0.390 |
51412 |
60 |
130 |
51 |
3.080 |
|
51211 |
55 |
90 |
25 |
0.690 |
51413 |
65 |
140 |
56 |
3.910 |
|
51212 |
60 |
95 |
26 |
0.690 |
51414 |
70 |
150 |
60 |
4.850 |
|
51213 |
65 |
100 |
27 |
0.750 |
51415 |
75 |
160 |
65 |
6.080 |
|
51214 |
70 |
105 |
27 |
0.790 |
51416 |
80 |
170 |
68 |
7.120 |
HAXB Bearing Production Workshop
HAXB Packing And Transportation
We warmly invite you to visit our production base and exhibition center. Here, you can inspect the Stainless Steel Thrust Ball Bearing 51103 up close-feel its premium stainless steel texture, examine its precise craftsmanship, and witness its performance in simulated application tests. Our technical team will be on hand to address queries about customization, technical specifications, or bulk orders. This is your chance to experience our quality firsthand and explore collaboration opportunities-we look forward to welcoming you!
